Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block
Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block
Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block
Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block

Aeromotive Phantom 200 Fuel System - Return Style w/Y-Block

(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.

PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!

  • This is a SPECIAL ORDER item and availability can vary, please contact us for an accurate timeframe of availability before purchase. Some items can take 30+ days from manufacturer to become available.***ANY SPECIAL ORDER PLACED WITHOUT CONTACTING US FIRST IS SUBJECT UP TO A 10% CANCELLATION FEE***

  • Manufacturer Part Number: 17165
  • WARNING: This product may contain chemicals known to the State of California to cause cancer or birth defects. PROP65 INFO

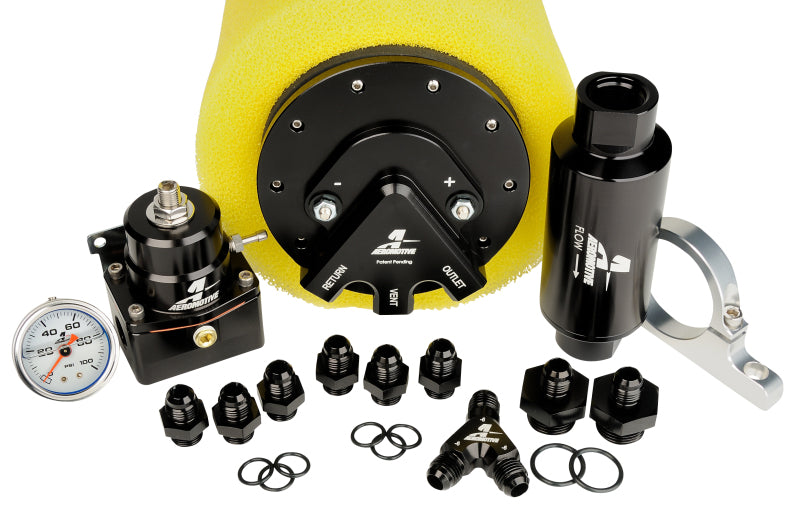

These new Phantom EFI Fuel Systems include all main fuel system components required to create a proper return-style EFI fuel system for engines with dual billet fuel rails, including the desired Phantom Baffled Fuel Pump Kit with a 200?LPH fuel pump.? Each system ships with the a custom black EFI bypass fuel pressure regulator, high-flow billet fuel filter, filter mounting bracket, hi-flow Y-block, plus all the required port fittings and o-rings, the deluxe wiring kit (not shown) and Aeromotive fuel pressure gauge. Ideal for naturally aspirated and blown, EFI engines producing from 300 ? 700 plus flywheel Horse Power, on the street or at the track. AN-06 Style fuel hose and hose-ends are required for the installation of a fuel supply and return line, sold separately and not included. This kit contains the following parts: 1ea p/n 18689 Phantom 200, 1ea p/n 12321 10-micron Filter Assembly, 1ea p/n 12305 Filter Bracket, 1ea p/n 13131 Fuel Pressure Regulator, 1ea p/n 16307 Fuel Pump Wiring Kit, 6 ea p/n 15606 AN-06 ORB to AN-06 flare, 2 ea p/n 15609 AN-10 ORB to AN-06 flare 1ea p/n 15633 0-100 psi Gauge, 1ea p/n 15672 AN-06 Y-Block.
