SPL Parts 06-13 BMW E80/E82/E82M / 06-13 BMW E90/E91/E92/E93 Rear Lower Control Arm Inner Bushing
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

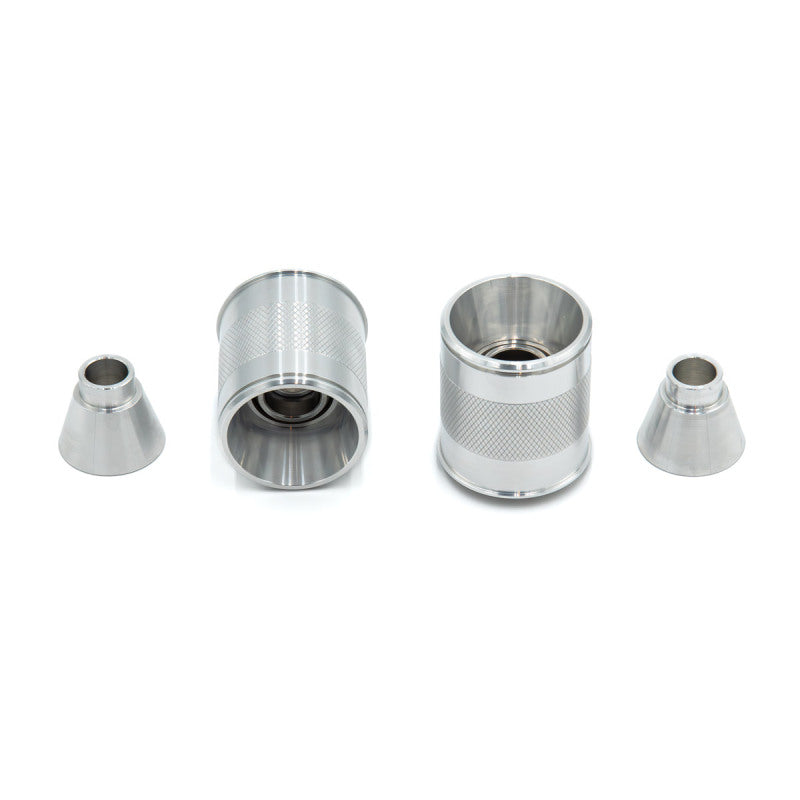

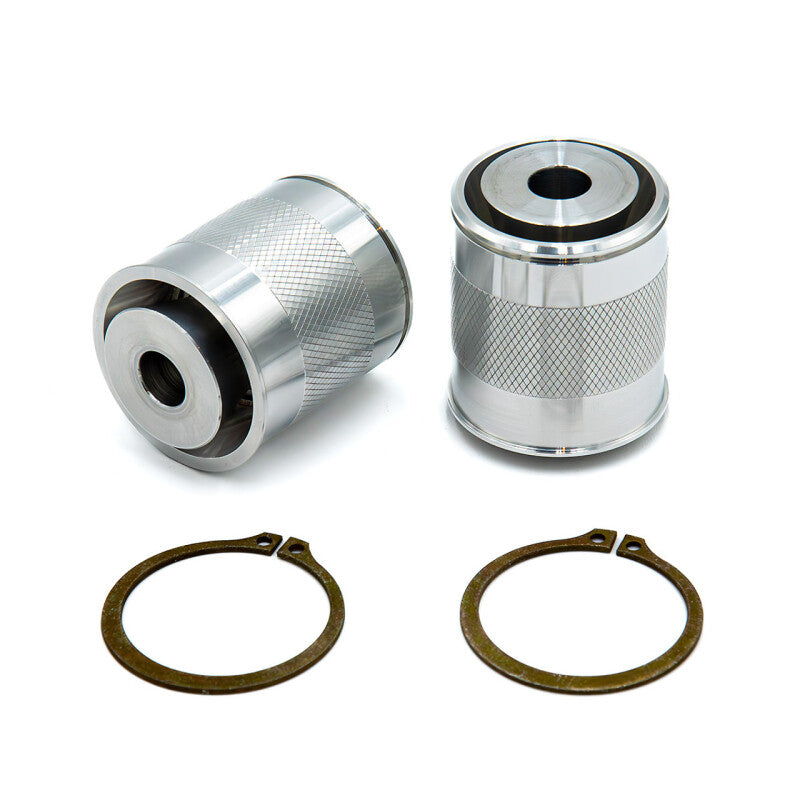

These rear lower control arm inner bushings replace the large rubber OEM bushing attaching the lower control arm to the subframe with a low-friction, PTFE-lined spherical bearing. Replacing the OEM component with this bushing eliminates deflection and binding under heavy load, preserving your desired camber and toe geometry under bump, and greatly reduces friction as the arm travels through it's range of motion. To increase longevity and reduce NVH, we use the largest possible spherical bearing with the tightest fit available by FK.BenefitsImproved Rear Cornering GripEliminates OEM Bushing Deflection and BindingPrecise Dynamic Geometry, Stability, and HandlingMaintenance-Free, US Made, PTFE-Lined FK BearingsMaterials6061-T6 aluminum bearing shells and spacersFK PTFE-lined spherical bearings (F1 spec, self-cleaning) made-in-usa.pngSold as a pair. Confirmed Applications2006 - 2013 E80, E82, E82M (1-Series, 1-Series M)2006 - 2013 E90, E91, E92, E93 (3-Series, M3)2014 - 2021 F80, F82, F83, F87 (M2, M3, M4) Replaces OEM Part Number33326770829 Installation InstructionsComing Soon
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011 | BMW | 1 Series M | Base |
| 2008-2013 | BMW | 128i | Base |
| 2008-2013 | BMW | 135i | Base |
| 2013 | BMW | 135is | Base |
| 2006 | BMW | 325i | Base |
| 2006 | BMW | 325xi | Base |
| 2007-2013 | BMW | 328i | Base |
| 2009-2013 | BMW | 328i xDrive | Base |
| 2007-2008 | BMW | 328xi | Base |
| 2006 | BMW | 330i | Base |
| 2006 | BMW | 330xi | Base |
| 2009-2011 | BMW | 335d | Base |
| 2007-2013 | BMW | 335i | Base |
| 2009-2013 | BMW | 335i xDrive | Base |
| 2011-2013 | BMW | 335is | Base |
| 2007-2008 | BMW | 335xi | Base |
| 2016-2018 | BMW | M2 | Base |
| 2019-2021 | BMW | M2 | Competition |
| 2020 | BMW | M2 | CS |
| 2008-2013,2015-2018 | BMW | M3 | Base |
| 2015-2020 | BMW | M4 | Base |
| 2019-2020 | BMW | M4 | CS |
| 2016 | BMW | M4 | GTS |
