SPL Parts Subaru BRZ / 15+ WRX / Toyota 86/GR86 Rear Spherical Knuckle Bushing
(Excluding Injectors) For Non Continental USA or International Shipping on ECUs and some other items, Please contact us directly to get an accurate quote for your order.
PLEASE CONTACT US DIRECTLY BEFORE PLACING ANY ORDERS TO CHECK AVAILABILITY ON ITEMS! SOME ITEMS MAY BE OUT OF STOCK WITHOUT ANY INDICATION. IF AN ORDER IS PLACED WITHOUT CONTACTING US DIRECTLY AND NEEDS TO BE CANCELLED, THERE IS UP TO A 10% CANCELLATION FEE!
ALSO, BECAUSE OF CURRENT TARIFF POLICIES IN THE UNITED STATES, IF YOUR PRODUCT IS COMING FROM INTERNATIONAL THERE MAY BE AN IMPORT DUTY THAT NEEDS TO BE PAID BEFORE RECEIVING YOUR PRODUCT. UNFORTUNATELY THIS IS OUT OF OUR CONTROL AND APOLOGIZE FOR ANY INCONVENIENCE.

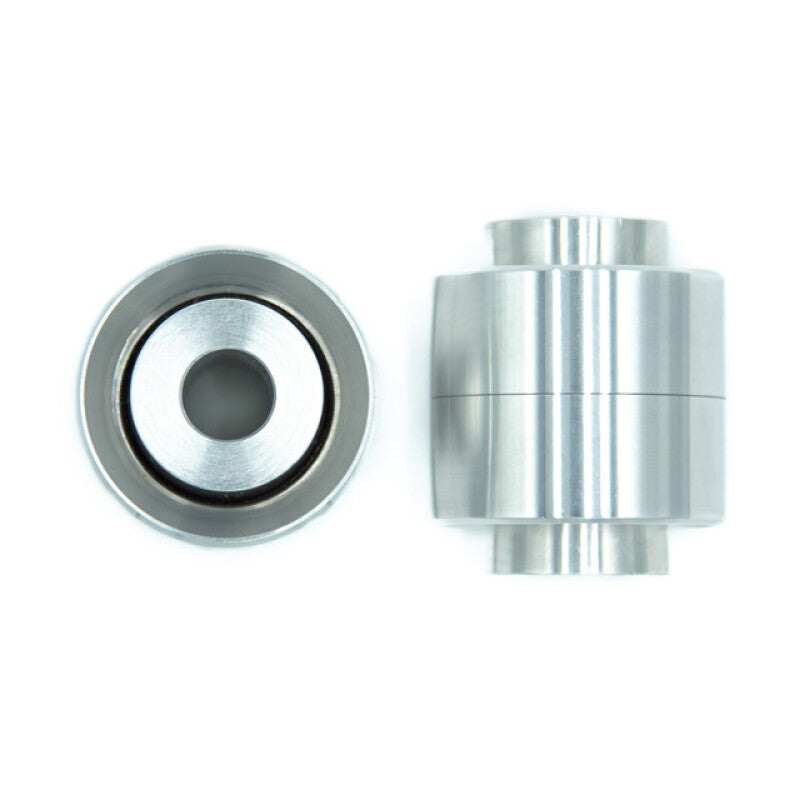

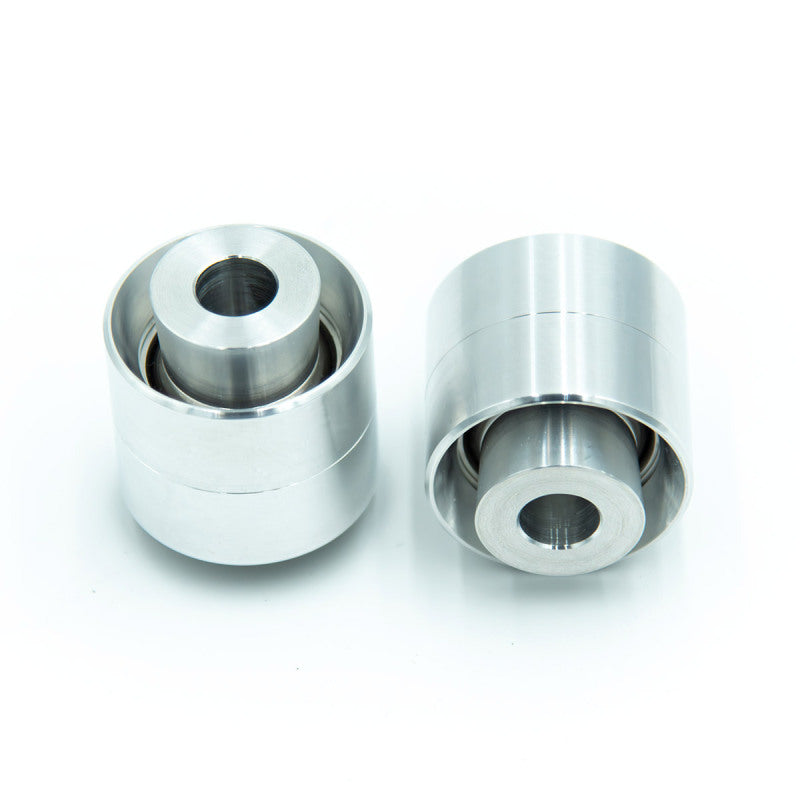

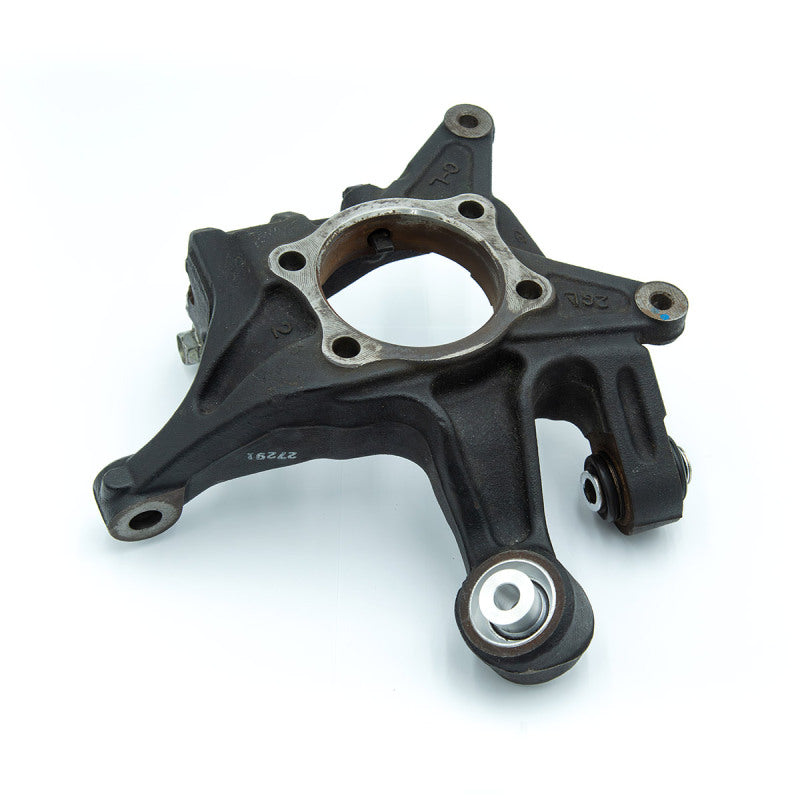

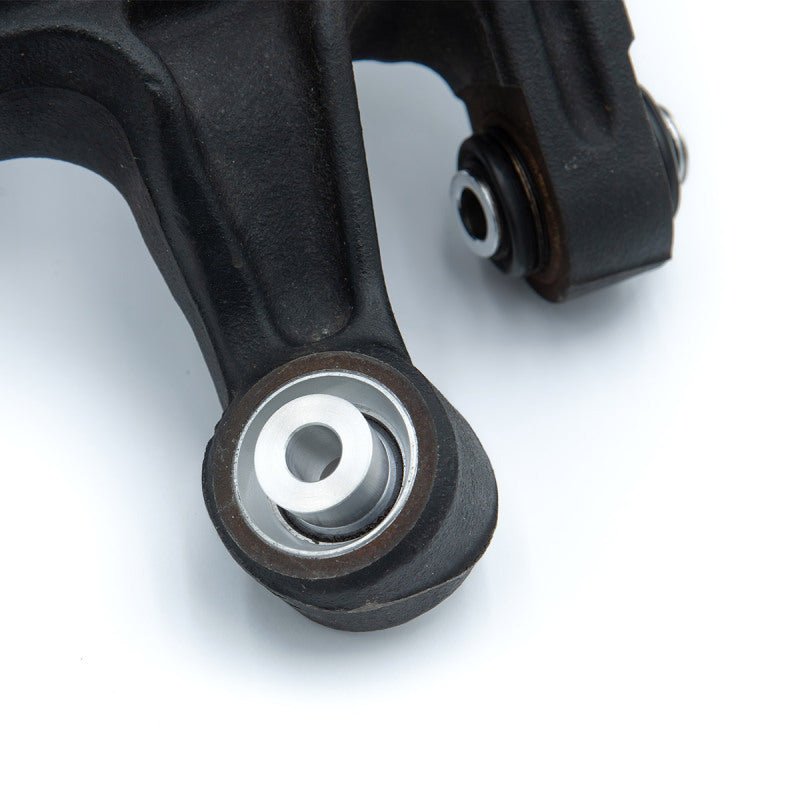

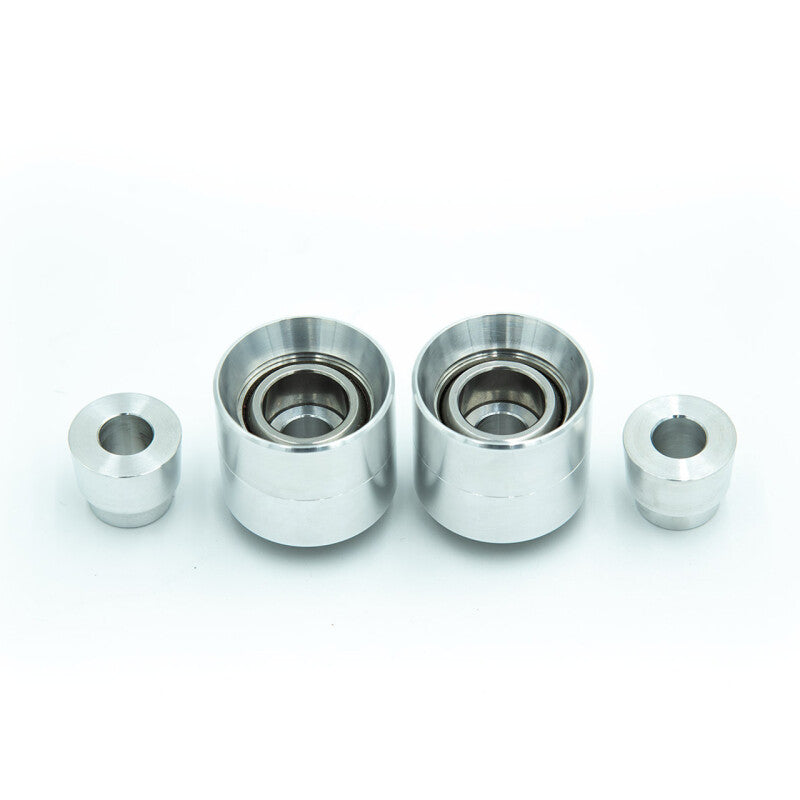

The SPL rear knuckle bushings replace the rubber factory knuckle bushing with a low friction PTFE-lined spherical bearing. Replacing the OEM rubber bushing eliminates deflection under heavy acceleration and braking loads that leads to unwanted geometry changes, and prevents binding by allowing the knuckle to smoothly articulate. The reduced deflection also translates to improved driver feedback from the tire and better overall response. We use the largest possible FK bearing, to increase longevity and reduce NVH, mounted in a 6061-T6 aluminum housing precision cut with +/- .001" tolerance to insure proper fitment.BenefitsLightweight: 0.674 lbs (306g) / 0.337 lbs (153g) per SideImproves Throttle and Braking ResponseReduced Wheel HopMaintenance-Free, US Made, PTFE-Lined FK BearingsMaterials6061-T6 Aluminum Bearing ShellsSteel PTFE-lined FK Spherical Bearings
This Part Fits:
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2016 | Scion | FR-S | Base |
| 2013-2020,2025 | Subaru | BRZ | Limited |
| 2013-2019,2025 | Subaru | BRZ | Premium |
| 2015 | Subaru | BRZ | Series.Blue |
| 2019 | Subaru | BRZ | Series.Gray |
| 2016 | Subaru | BRZ | Series.HyperBlue |
| 2017 | Subaru | BRZ | Series.Yellow |
| 2018,2020,2025 | Subaru | BRZ | TS |
| 2015-2024 | Subaru | WRX | Base |
| 2022-2025 | Subaru | WRX | GT |
| 2015-2025 | Subaru | WRX | Limited |
| 2015-2025 | Subaru | WRX | Premium |
| 2024 | Subaru | WRX | TR |
| 2025 | Subaru | WRX | TS |
| 2015-2021 | Subaru | WRX STI | Base |
| 2015 | Subaru | WRX STI | Launch Edition |
| 2015-2021 | Subaru | WRX STI | Limited |
| 2019 | Subaru | WRX STI | S209 |
| 2016 | Subaru | WRX STI | Series.HyperBlue |
| 2018 | Subaru | WRX STI | Type RA |
| 2017-2020 | Toyota | 86 | Base |
| 2018-2020 | Toyota | 86 | GT |
| 2020 | Toyota | 86 | Hakone Edition |
| 2017 | Toyota | 86 | Special Edition |
| 2019 | Toyota | 86 | TRD Special Edition |
| 2023 | Toyota | GR86 | 10th Anniversary Special Edition |
| 2022-2025 | Toyota | GR86 | Base |
| 2025 | Toyota | GR86 | Hakone Edition |
| 2022-2025 | Toyota | GR86 | Premium |
| 2024 | Toyota | GR86 | TRUENO Edition |
